ASUS PRIME H610M-E D4-CSM
90MB19N0-M1EAYC | 4711081514800de ASUS
- ⭐ Añadir opinión
Vendido y enviado por TechLife
90,95 €
IVA incl.
Envíos GRATIS en pedidos superiores a 399€
Pago Seguro y financiación con:
-
CPU
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
-
Chipset
- Intel® H610 Chipset
-
Memoria
- 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
-
Gráficos
- 1 x DisplayPort**
- 1 x D-Sub port
- 1 x HDMI® port***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
-
Expansion Slots
- Intel® 12th Gen Processors
- 1 x PCIe 4.0 x16 slot
- Intel® H610 Chipset
- 1 x PCIe 3.0 x1 slot
-
Almacenamiento
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Intel® H610 Chipset
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
- 4 x SATA 6Gb/s ports
-
Ethernet
- 1 x Realtek 1Gb Ethernet
-
USB
- Rear USB (Total 4 ports)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
-
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
-

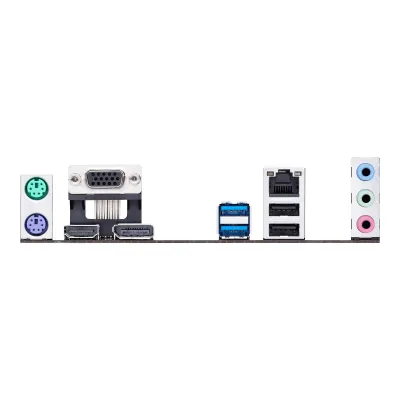

Panel trasero I/O Ports
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x D-Sub port
- 1 x HDMI® port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard (purple) port
- 1 x PS/2 Mouse (green) port
-
Conectores internos I/O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
-
USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x COM Port header
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
-
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM
- - LANGuard
- - Overvoltage Protection
- - SafeSlot Core
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-Slot
- ASUS Thermal Solution
- - Aluminum heatsink design
- ASUS Lighting Control
- - RGB header
-
Software Features
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3
- - Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI+ VRM
- Fan Xpert 2+
- ASUS CPU-Z
- IT Management software supported
- - ASUS Control Center Express(ACCE)
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
-
BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
-
Manejabilidad
- WOL by PME, PXE
-
Accesorios
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 SSD screw package
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x ACC Express Activation Key Card
- 1 x User guide
-
Sistema operativo
- Windows® 11 64-bit, Windows® 10 64-bit
-
Factor de forma
- mATX Form Factor
- 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
90MB19N0-M1EAYC
100 Productos
Detalles del producto
- Alimentación
- ATX
- Chipset
- H610
- Tipo de memoria
- Memoria DDR4
- RAM máximo soportado
- 64 GB RAM
- Factor de forma
- Micro ATX
- Socket compatible
- 1700
- Zocalos RAM
- 2 zocalos
- InterFace de Disco M.2
- 2 Ranuras M.2
EAN
- ean13
- 4711081514800
